CG90137125S

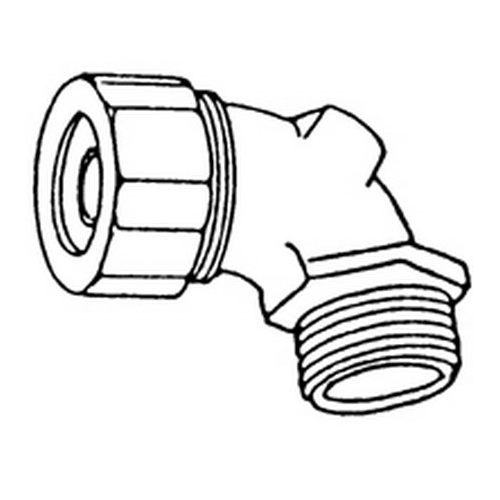

Appleton®* Actual product may vary from image
Cord and Cable Connector, Type 90 Deg, Thread Size 1-1/4 Inch, Material Malleable Iron Body, Machined Steel Cap, Neoprene Grommet, Steel/Teflon Washer, Cord Size 1.375 to 1.5 Inch, Size 2.13 Inch Dia, Approval UL 514B, CSA C22.2, Application Liquidtight, Strain Relief, Dry/Wet/Hazardous Location, Color Yellow, Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III
Details
MFG PART #:CG90137125S
McMc Part #:EGSMCG90137125S
UPC #:781381449229
Inventory
$7,852.00 C
Details
MFG PART #:CG90137125S
McMc Part #:EGSMCG90137125S
UPC #:781381449229
Inventory
Attributes
Features
Documentation
Attributes
Brand:Appleton®
Color:Yellow
Connection Type:Thread
Dimensions:2.13 in OD
Material:Malleable Iron
Trade Size:1-1/4 in
Angle:90 deg
Cable Openings:1-3/8 to 1-1/2 in
Features
| Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable |
