STB250
AppletonĀ®* Actual product may vary from image

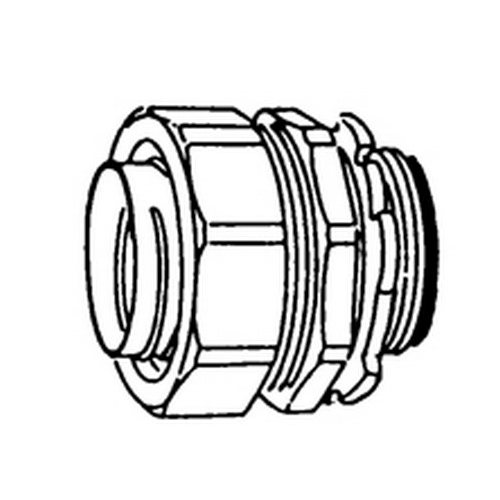

STB Series Straight Liquidtight Connector With Insulated Throat, Size: 2-1/2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Dimensions: 3.38 IN Length X 3.94 IN He
Details
MFG PART #:STB250
TRC Part #:EGSMSTB250
UPC #:781381681254
Inventory
Details
MFG PART #:STB250
TRC Part #:EGSMSTB250
UPC #:781381681254
Inventory
Attributes
Features
Documentation
Attributes
Brand:AppletonĀ®
Angle:Straight
Dimensions:3.38 in L x 3.94 in H
Finish:Triple Coated
Material:Malleable Iron
Series:STB
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:2-1/2 in
Type:Liquid Tight Oiltight Raintight
Features
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Polypropylene sealing ring with locknut standard |
| Full, machined tapered threads (NPT) |
| Compact design with small turning radius |
| Seals out oil, water, dust, dirt and fumes |
| Suitable for wet locations |
| Chromate/epoxy powder coated/zinc electroplated finish |
