ATL250-12
Blackburn®* Actual product may vary from image
Type Aluminum One-Hole Lug, Max 35kV, Wire Size 250 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code Red
Details
MFG PART #:ATL250-12
McMc Part #:TBCOATL25012
UPC #:783786611058
Inventory
$5,689.50 C
Details
MFG PART #:ATL250-12
McMc Part #:TBCOATL25012
UPC #:783786611058
Inventory
Attributes
Features
Documentation
Attributes
Brand:Blackburn®
Barrel Type:Standard
Color:Red
Conductor Size:250 kcmil
Conductor Type:Aluminum/Copper
ETIM:EC001051
Material:Aluminum

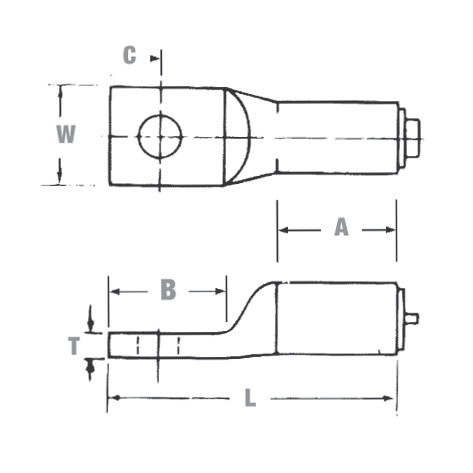

Overall Length:4-1/32 in
Specifications:Tin Plated
Type:1-Hole
Voltage Rating:35 kV
Series:ATL
Stud Size:1/2 in
Barrel Size:2-1/32 in L
Tongue Size:1-1/4 in L x 1-9/32 in W x 1/4 in THK
Tongue Type:Straight
Features
| Specifically designed for use with aluminum conductors (concentric, compressed or compact) |
| Also listed for use with copper conductors |
| Made of high conductivity seamless aluminum tubing |
| Chamfered barrels for ease of installation |
| Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used |
| Color coded for quick, easy die identification |
| Prefilled with oxide-inhibitor |
| Tin plated for corrosion-resistance |
