CTL6-516
Blackburn®* Actual product may vary from image
Copper One-Hole Lug, Short Barrel, Max 35kV, 6 Str. Wire, 5/16 Bolt Size, Tin Plated, Die Color Code Blue
Details
MFG PART #:CTL6-516
McMc Part #:TBCOCTL6516
UPC #:783786131716
Inventory
$740.68 C
Details
MFG PART #:CTL6-516
McMc Part #:TBCOCTL6516
UPC #:783786131716
Inventory
Attributes
Features
Documentation
Attributes
Brand:Blackburn®
Barrel Type:Short/Standard
Color:Blue
Conductor Size:6 AWG
Conductor Type:Flexible/Stranded Copper
ETIM:EC001051
Material:Copper

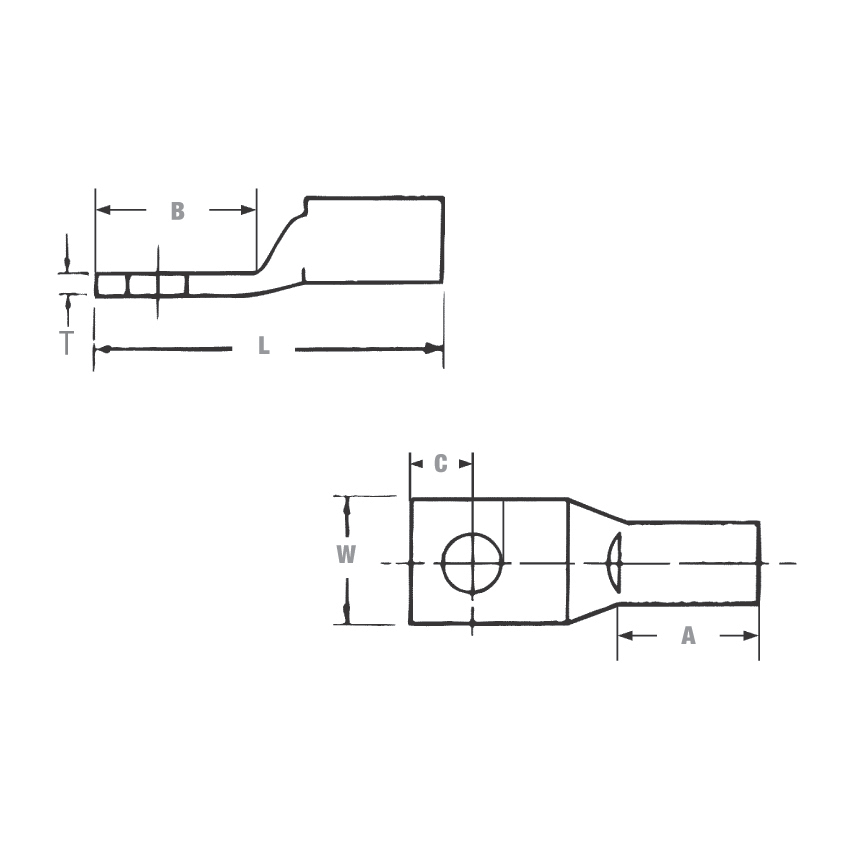

Overall Length:1-13/32 in
Specifications:Tin Plated
Type:1-Hole
Voltage Rating:35 kV
Series:CTL
Stud Size:5/16 in
Barrel Size:7/16 in L
Tongue Size:21/32 in L x 19/32 in W x 1/16 in THK
Tongue Type:Straight
Features
| Made of high conductivity seamless copper tubing |
| Tin plated for corrosion-resistance |
| Specially chamfered barrel for ease of installation |
| Color coded for matching die identification |
| Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used |
| Short barrel connectors designed for regular duty applications |
| For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord |
