5842
Leviton®* Actual product may vary from image
20 Amp, 125/250 Volt, NEMA 5-20R_6-20R, 2P, 3W, Narrow Body Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Dual Voltage, Side Wired, Steel Strap, - Brown
Details
MFG PART #:5842
TRC Part #:LEVI5842
UPC #:078477251003
Inventory
$ E
Details
MFG PART #:5842
TRC Part #:LEVI5842
UPC #:078477251003
Inventory
Attributes
Features
Documentation
Attributes
Brand:Leviton®
Type:1-Phase Duplex Dual Voltage Self-Grounding
Voltage Rating:125/250 VAC
Amperage Rating:20 A
Horsepower:1 hp, 2 hp
Number of Poles:2
Number of Wires:3

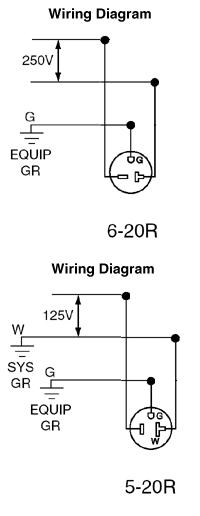

NEMA Rating:NEMA 5-20R/6-20R
Grade:Commercial
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Material:Nylon
Color:Brown
Dimensions:46 in H x 1.56 in W x 19 in D
Features
| Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required |
| Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives |
| Easy-to-read voltage and amperage rating molded onto smooth face |
| Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance |
| Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs |
| #8 terminal screws accept up to no 12 AWG solid or stranded copper wire |
| Termination anchor holes for easy conductor wiring |
| Exclusive shield wall design protects ground connection from contact with live circuit conductors |
| "A" and "B" molded on face and back for easy identification of receptacle pairs for split circuit conversion |
| Convenient built-in strip gauge |
