F2033
Sta-KonĀ®* Actual product may vary from image

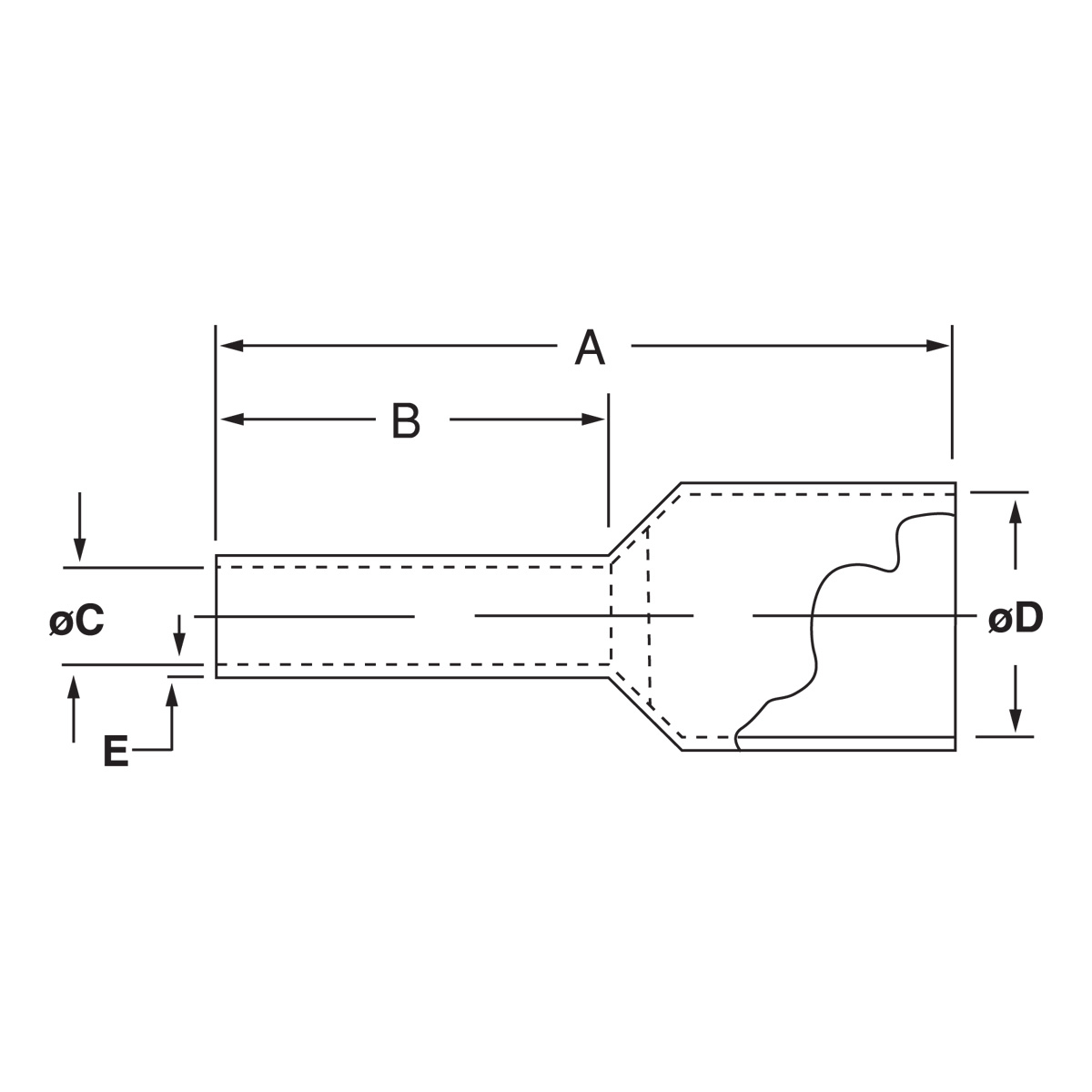

Polypropylene-Insulated Ferrule, Total Length .728 Inches/18.5mm, Pin Length .472 Inches/12mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .134 Inches/3.4mm, Wire Range 16 AWG/1.50mm2, Color Black, Copper, Tin Plated
Details
MFG PART #:F2033
TRC Part #:TBCOF2033
UPC #:786210335131
Inventory
$Ā C
**Must be ordered in quantities of 500**
Details
MFG PART #:F2033
TRC Part #:TBCOF2033
UPC #:786210335131
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-KonĀ®
Barrel Size:0.134 in Dia
Barrel Type:Long
Color:Black
Conductor Size:16 AWG
Conductor Type:Stranded Copper
ETIM:EC000005
Finish:TiN Coated
Length:0.728 in
Material:Copper
Series:F Series
Specifications:0.071 in ID x 0.472 in L x 0.006 in THK Pin, 0.134 in Dia Base
Temperature Rating:105 deg C
Type:Insulated
Voltage Rating:300 V AC, 300 VAC
Features
| Polypropylene insulated |
| Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks |
| Made of high conductivity copper |
| Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized |
| Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp |
| Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block |
| Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires |
| Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal |
| T1, T3 and ERG4 recommended tools |
