RC10-55PT
Sta-KonĀ®* Actual product may vary from image

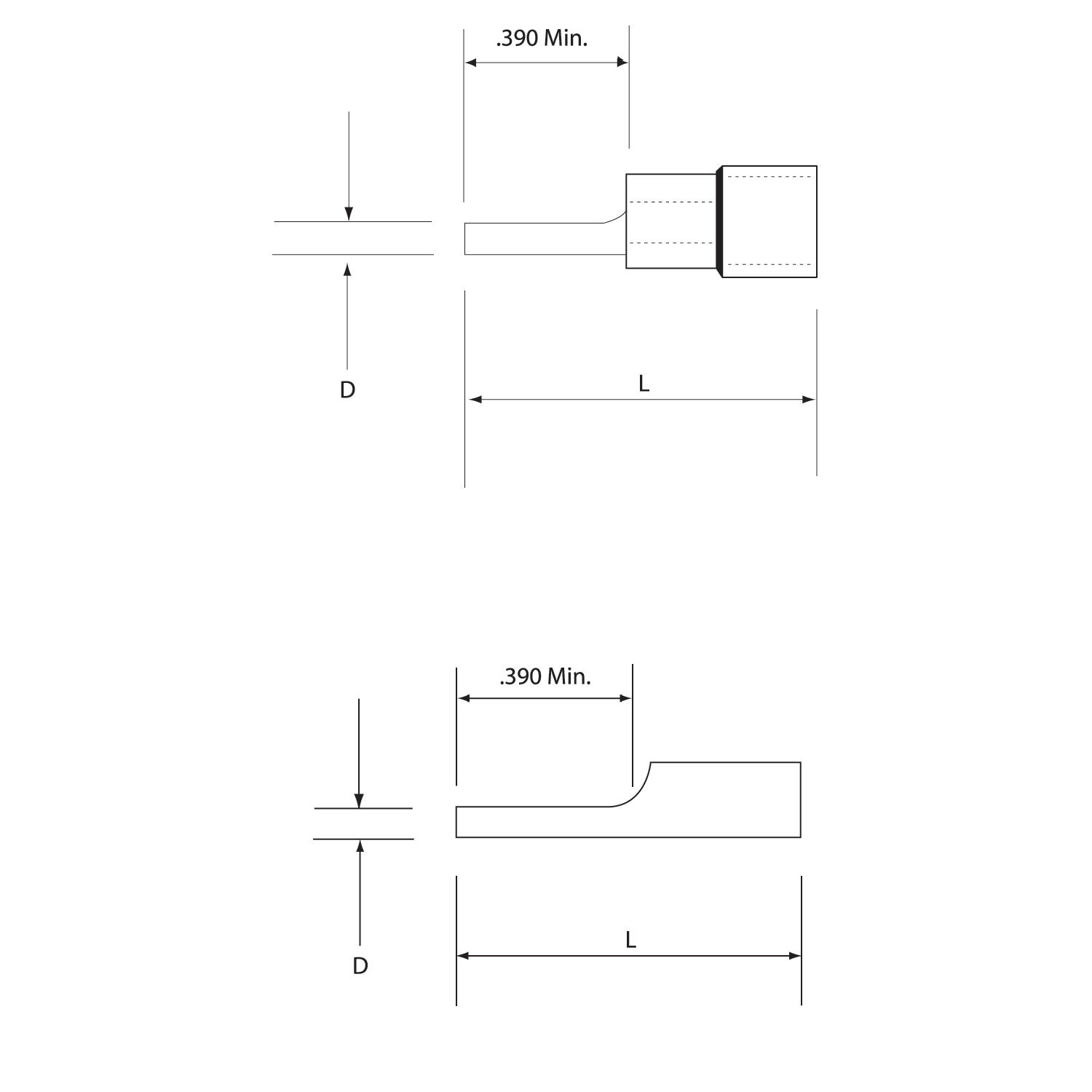

Nylon Insulated Pin Terminal, Length 1.04 Inches, Pin Length .390 Inches, Diameter .106 Inches, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Details
MFG PART #:RC10-55PT
TRC Part #:TBCORC1055PT
UPC #:786210030883
Inventory
$Ā C
Details
MFG PART #:RC10-55PT
TRC Part #:TBCORC1055PT
UPC #:786210030883
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-KonĀ®
Color:Yellow
Conductor Size:12 to 10 AWG
ETIM:EC001052
Material:Copper
Overall Length:1.06 in
Pin Diameter:0.106 in
Pin Length:0.39 in
Series:RC Series
Specifications:0.04 in Stock THK
Temperature Rating:105 deg C
Type:Insulated
Voltage Rating:300 VAC
Features
| Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks |
| Nylon insulated |
| ERG4001 recommended tool |
| Designed to prevent shorting, wire strand loss and/or wire pullout resulting from improper termination of stranded wire |
| Designed to meet emerging global standards which require wire to metric-style terminal block installations be terminated with a "pin" style terminal |
| Electro-tin plated finish |
