RC484

Sta-KonĀ®

* Actual product may vary from image

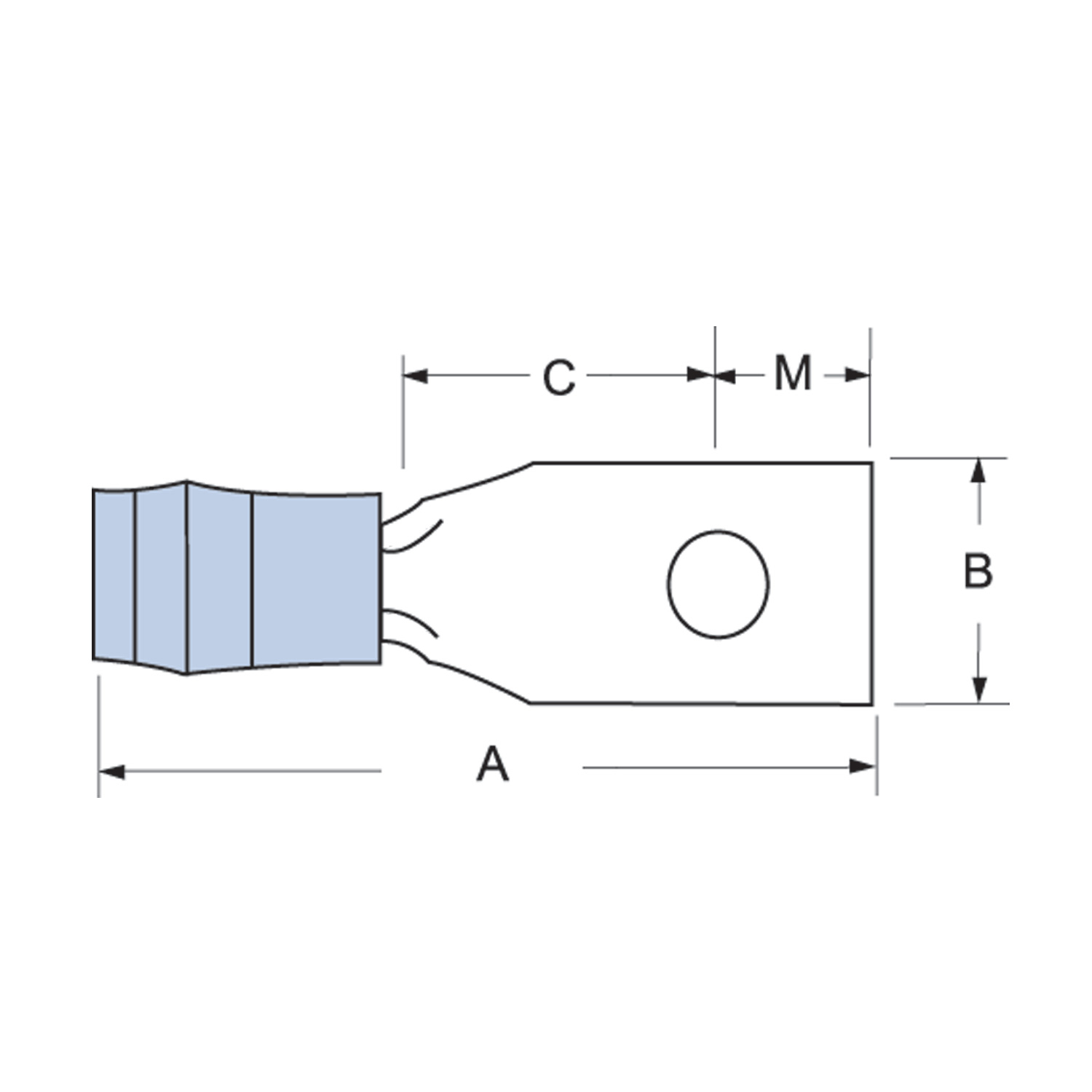

Nylon Insulated Rectangular Ring Terminal, Length 1.203 Inches, Width .237 Inches, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Details

MFG PART #:RC484

TRC Part #:TBCORC484

UPC #:786210819952

Inventory

$Ā C

Details

MFG PART #:RC484

TRC Part #:TBCORC484

UPC #:786210819952

Inventory

Attributes

Brand:Sta-KonĀ®
Barrel Type:Brazed/Overlapped Seam
Color:Yellow
Conductor Size:12 to 10 AWG
ETIM:EC001052
Finish:TiN Coated
Length:1.203 in
Material:Copper
Series:RC Series
Specifications:0.4 in Clearance, Nylon Insulation
Stud Size:#6
Temperature Rating:105 deg C
Tongue Size:0.237 in W x 0.04 in THK
Tongue Type:Rectangle
Type:Insulated
Voltage Rating:600 V AC, 600 VAC
