RC485

Sta-Kon®

* Actual product may vary from image

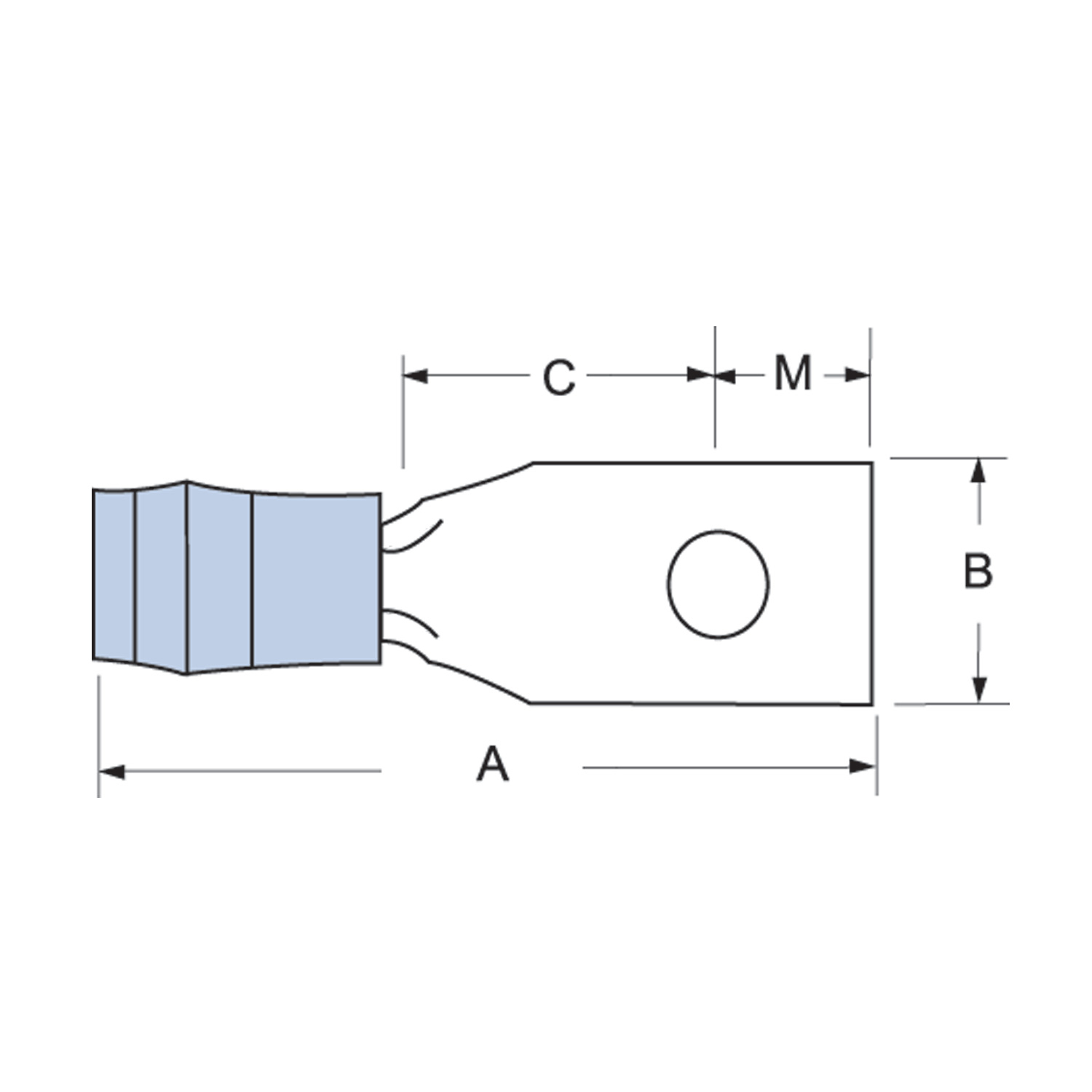

Nylon Insulated Rectangular Ring Terminal, Length 1.187 Inches, Width .237 Inches, Bolt Hole #4, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Details

MFG PART #:RC485

TRC Part #:TBCORC485

UPC #:786210911625

Inventory

$ C

Details

MFG PART #:RC485

TRC Part #:TBCORC485

UPC #:786210911625

Inventory

Attributes

Brand:Sta-Kon®
ETIM:EC001052
Type:Insulated
Series:RC Series
Conductor Size:12 to 10 AWG
Stud Size:#4
Length:1.187 in
Barrel Type:Brazed/Overlapped Seam
Tongue Type:Rectangle
Tongue Size:0.599 in L x 0.237 in W x 0.04 in THK
Voltage Rating:600 VAC
Specifications:Nylon Insulation
Temperature Rating:105 deg C
Material:Copper/Nylon
Finish:TiN Coated
Color:Yellow
