RCCS22X
Sta-KonĀ®* Actual product may vary from image

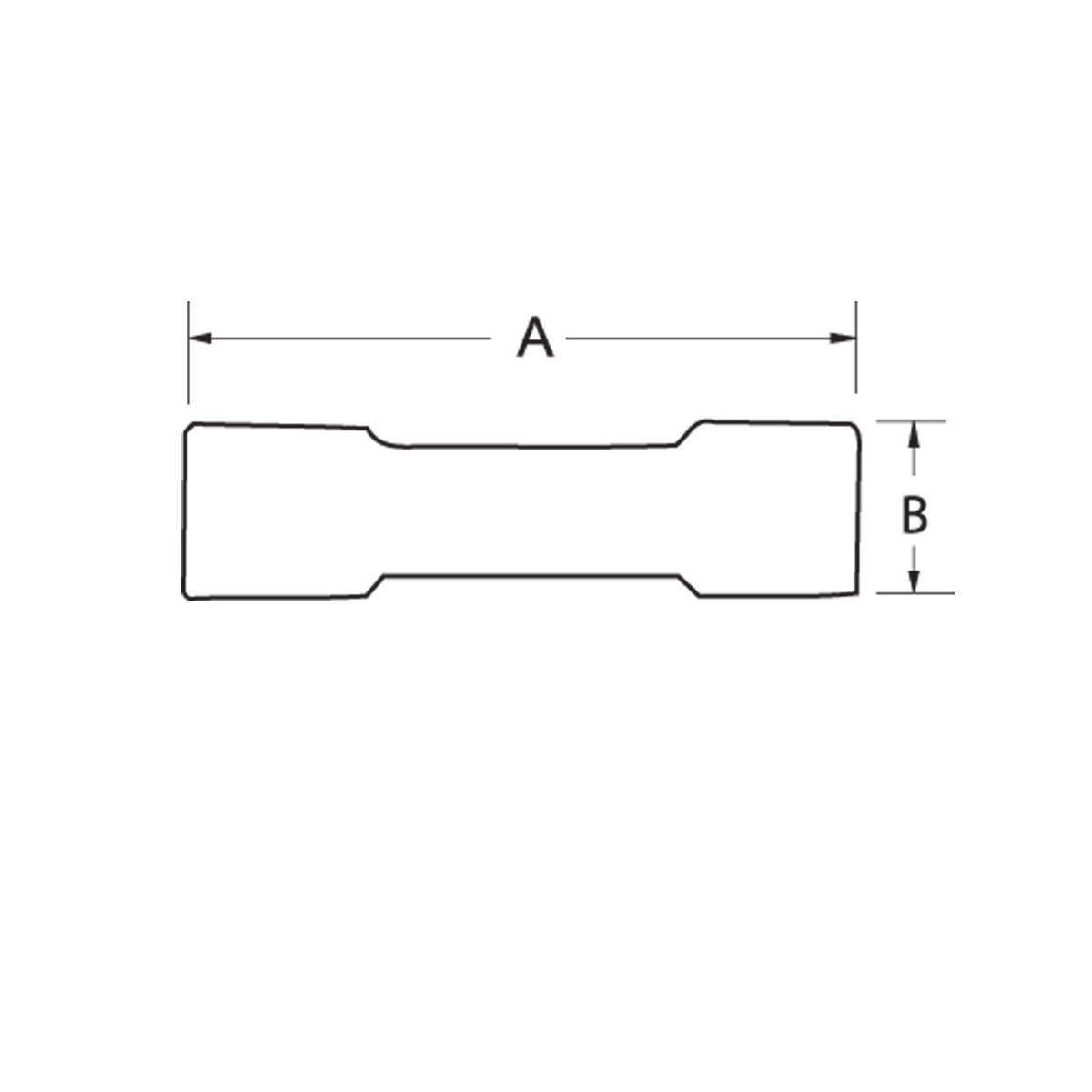

Heat Shrinkable Butt Splice, Length 1.60 Inches, Width .31 Inches, Maximum Insulation Diameter .250, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 250 Pack
Details
MFG PART #:RCCS22X
TRC Part #:TBCORCCS22X
UPC #:786210223902
Inventory
Details
MFG PART #:RCCS22X
TRC Part #:TBCORCCS22X
UPC #:786210223902
Inventory
Attributes
Features
Documentation
Attributes
Brand:Sta-KonĀ®
Color:Yellow
Conductor Size:12 to 10 AWG
Dimensions:0.31 in Dia
ETIM:EC001059
Finish:Electro-Tin Plated
Length:1.6 in
Material:Copper
Series:RCS
Specifications:1/4 in Maximum Insulation
Temperature Rating:150 deg C
Type:Heat Shrinkable Insulated
Voltage Rating:600 V AC, 600 VAC
Features
| Heat shrinkable with electro tin plated |
| Self-insulated with heat shrinkable polyolefin and internally coated sealant |
| Completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion and environmental exposure |
